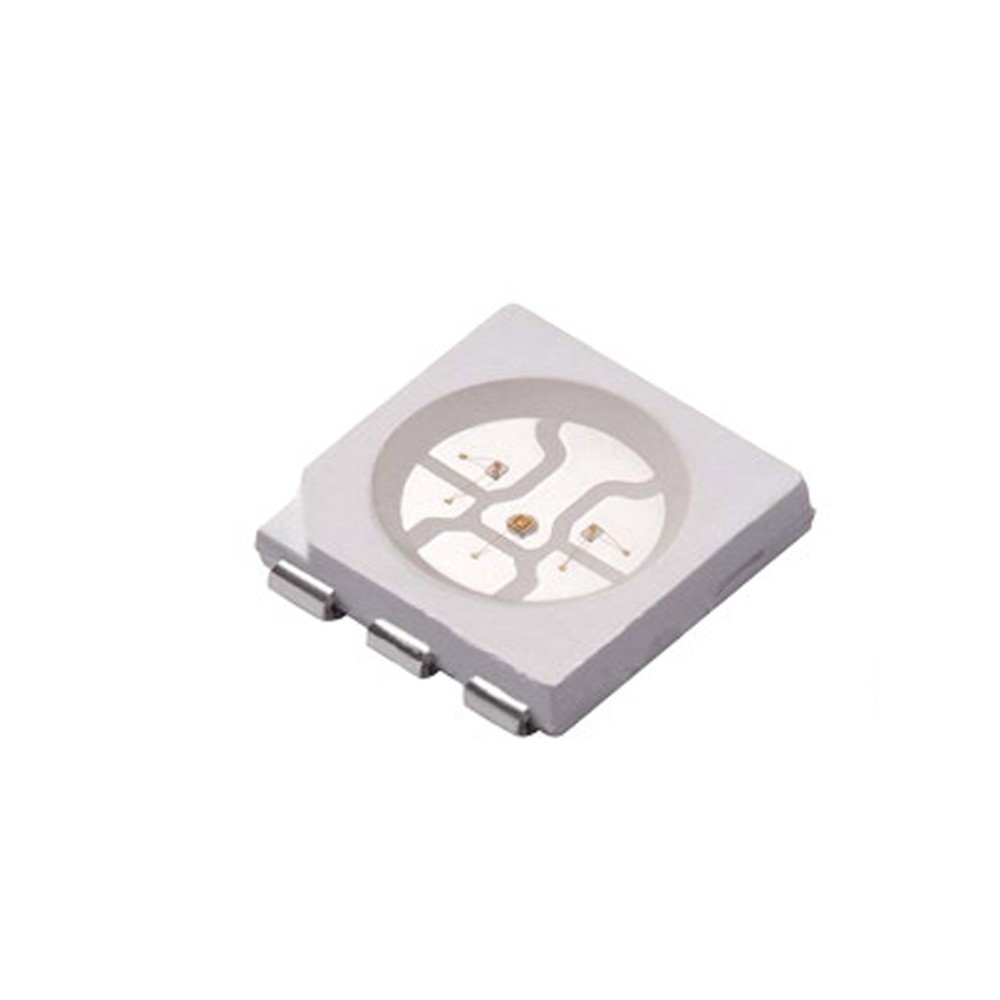

SMD 5050

It perfectly replaces the existing incandescent lamps and fluorescent FPL lamps. Compared to the conventional lamps, it saves up to 85% of energy costs.

Features

White colored PLCC SMT package
5.0* 5.0 * 1.2(L*W*H)
Pb-Free Reflow Soldering application
Built-in 1chip/3chip LED
RoHS Compliant
Wide viewing angle : 120° lambertian emitter

Applications

AV equipment & Multimedia (LCD-TV etc.)
Handy Phone Flash
Automotive exterior & Interior
Signboard
Traffic Signal

SMD 5050 Specifications

Part No.	Color	λd(nm)	VF(V)	IF(mA)	IV(mcd)	Viewing Angle
WOS-U400NE5A		400	3.2-4.0	20	6(mW)	120
WOS-U415NE5A		415	3.2-4.0	20	10(mW)	120
WOS-W30LB5A		3000 -6000(K)	3.0-3.8	20	2500 -8000	120
WOS-B465NR5A		465-470	2.8-3.5	20	750-900	120
WOS-G500NF5A		500-505	2.8-3.5	20	650-900	120
WOS-G525SB5A		525-530	2.8-3.5	20	750-900	120
WOS-Y590UE5A		590-595	1.8-2.4	20	700-950	120
WOS-R620TN5A		620-630	1.8-2.4	20	800-900	120
WOS-R650HN5A		650-660	1.8-2.4	20	550-600	120
WOS-730UC5A		730	1.5-2.0	20	35-55 (mW/sr)	120
WOS-830SR5A		830	1.5-2.0	20	15-35 (mW/sr)	120
WOS-850HE5A		850	1.5-2.0	20	25-45 (mW/sr)	120
